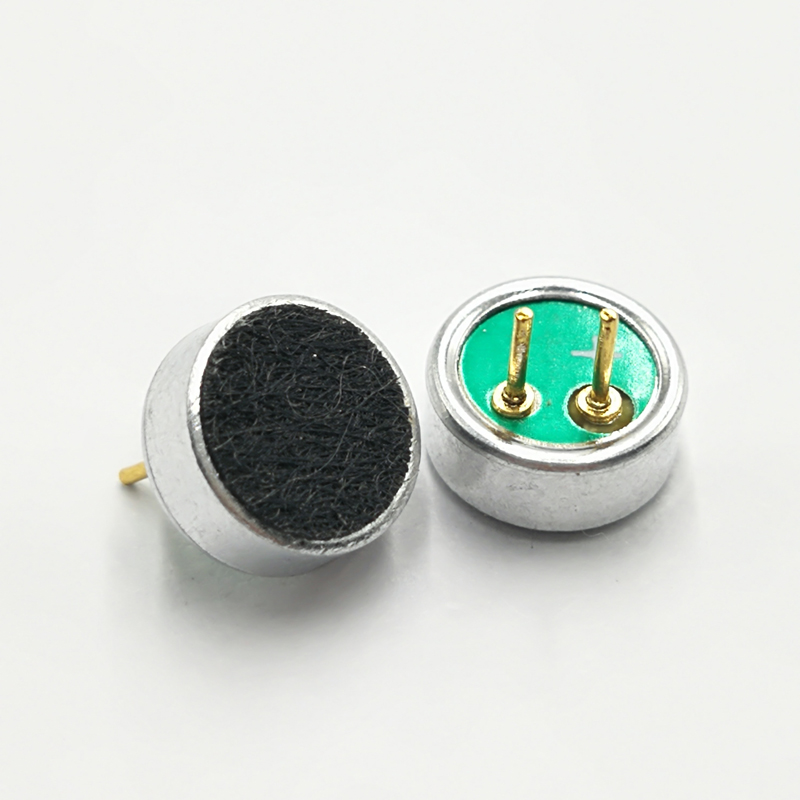

ZEH-MIC-602200201
noise canceling electret condenser microphone Analog electret condenser microphone 6.0*2.2mm for tablet PC camera microphone ROHS approve
Specifications:
Product model: 6.02.2mm Related product model: 4.01.3mm,4.01.5mm,6.02.2mm,6.02.7mm,6.05.0mm,9.74.5mm,9.75.0mm,9.7*6.7mm and etc..for more dimensions selection, please contac us.
Sensitivity: -38dB~-62dB=(0dB=1v/pa.1KHz)
Impedance: 2.2KΩ at 1Khz
Directivity: Omni-directional
Frequency: 20-16,000Hz
Max.operation voltage: 10v
Standard operation voltage: 2v
Current consumption: Max.0.5mA
Sensitivity reduction: Within-3dB at 1.5v
S/N ratio: More than 60dB
