Audio full range Loud Speaker

prev
next

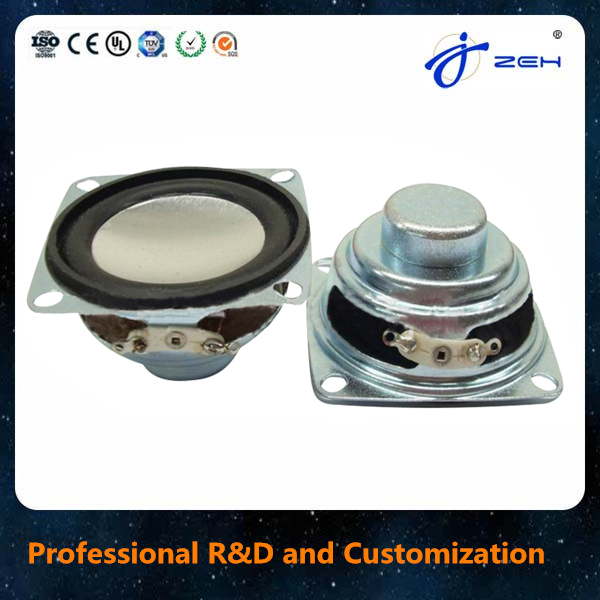

ZEH-M-AU-5252-01

52mm*52mm square speaker 2 inch speaker...

Detailed content

    Specifications
    FRAME:Metal
    Dimensions(LxWxH):52mm(more product models for your choice, please contact us.)
    SOUND PRESSURE LEVEL:93±3dB  at 1000Hz.
    Measure Condition: sin swept measurement at 1w on axis at 0.5m.
    RESONANCE FREQUENCY( Fo ):300±20%Hz at 1V.( No Baffle )
    IMPEDANCE: 4±15% or 8±15%  (at 1KHz 1V) without baffler.
    FREQUENCY RANGE: FO~20k Hz (Deviation 10 dB from average S.P.L.)
    RATED POWER:2.0W.  MAX POWER:5.0W.
    DISTORTION: Less than 5% at 1KHz, 1W
    OPERATING TEMPERATURE RANGE:  -20ºC to +80ºC
    STORAGE TEMPERATURE RANGE: -20ºC to +80ºC
