electret condenser microphone

prev
next

ZEH-MIC-6050003

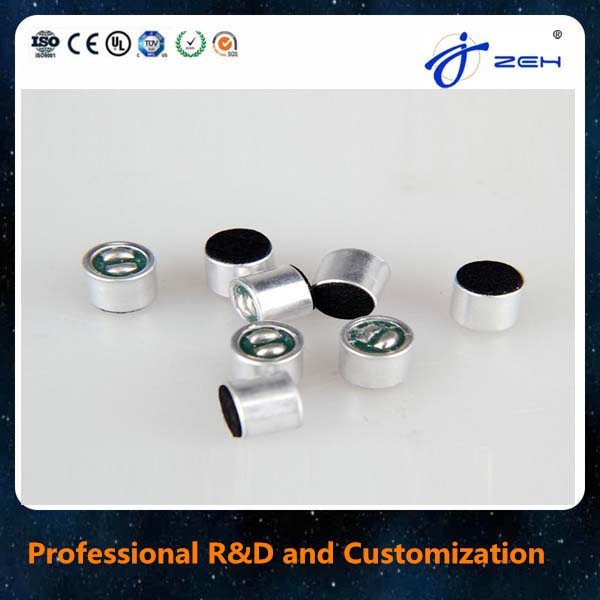

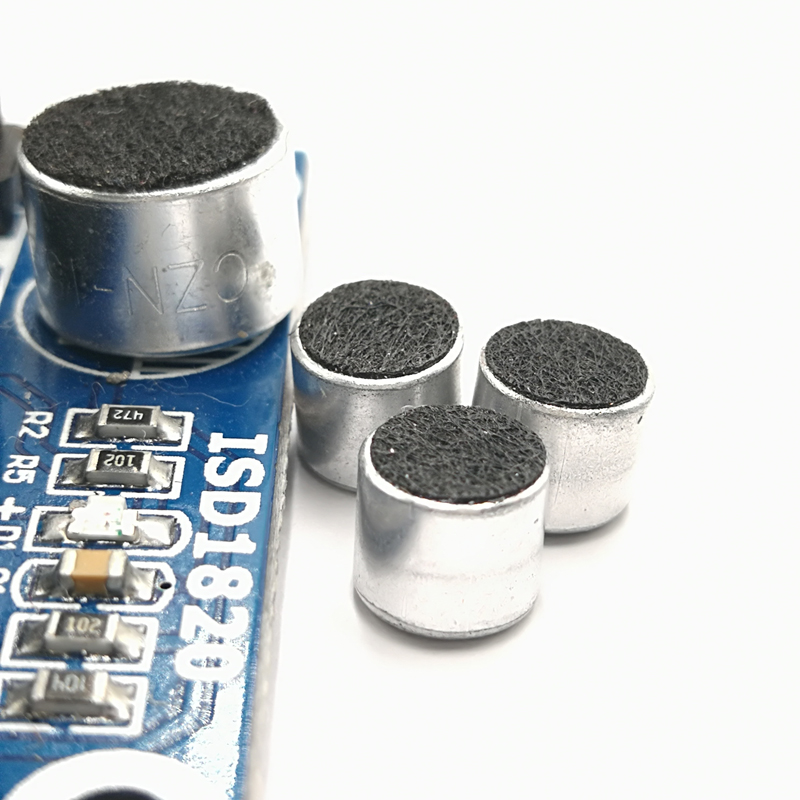

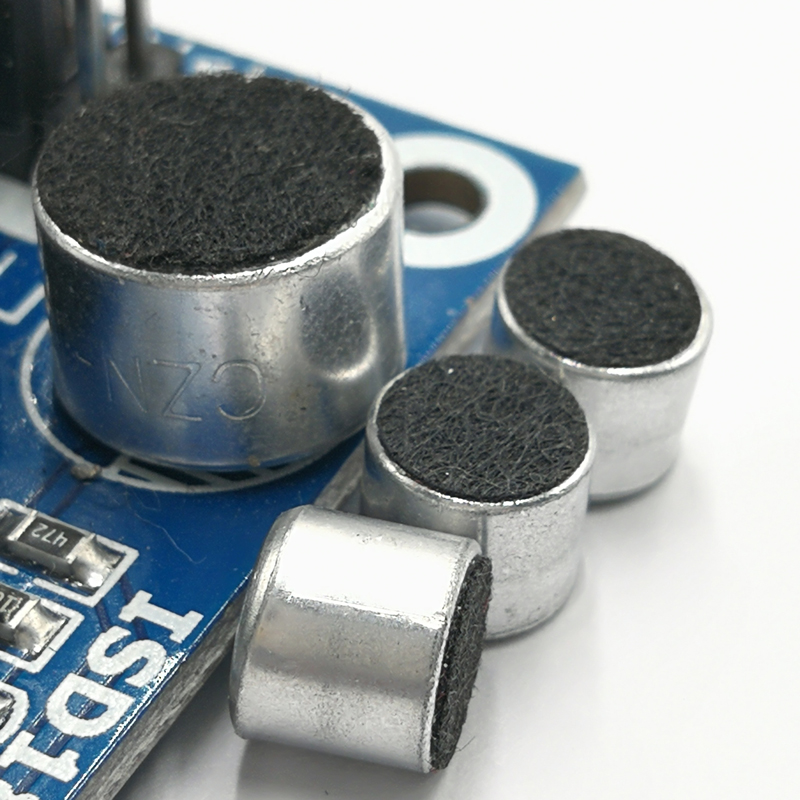

High quality SMD bluetooth headset Electret Condenser Microphone Omnidirectional Electret Condenser Microphone...

Detailed content

    Specifications:
    Product model: 6.0*2.7mm,6.0*5.0mm
    Related product model: 4.0*1.3mm,4.0*1.5mm,6.0*2.2mm,6.0*2.7mm,6.0*5.0mm,9.7*4.5mm,9.7*5.0mm,9.7*6.7mm and etc..for more dimensions selection, please contac us.
    Sensitivity: -38dB~-62dB=(0dB=1v/pa.1KHz)
    Impedance: 2.2KΩ at 1Khz
    Directivity: Omni-directional
    Frequency: 20-16,000Hz
    Max.operation voltage: 10v
    Standard operation voltage: 2v
    Current consumption: Max.0.5mA
    Sensitivity reduction: Within-3dB at 1.5v
    S/N ratio: More than 60dB

Get a quote
